The modern hatchery manager’s goal is to produce large numbers of uniform, robust day old chicks. Dayal is the only system that meets this requirement by uniquely combining modular incubator design and technology.

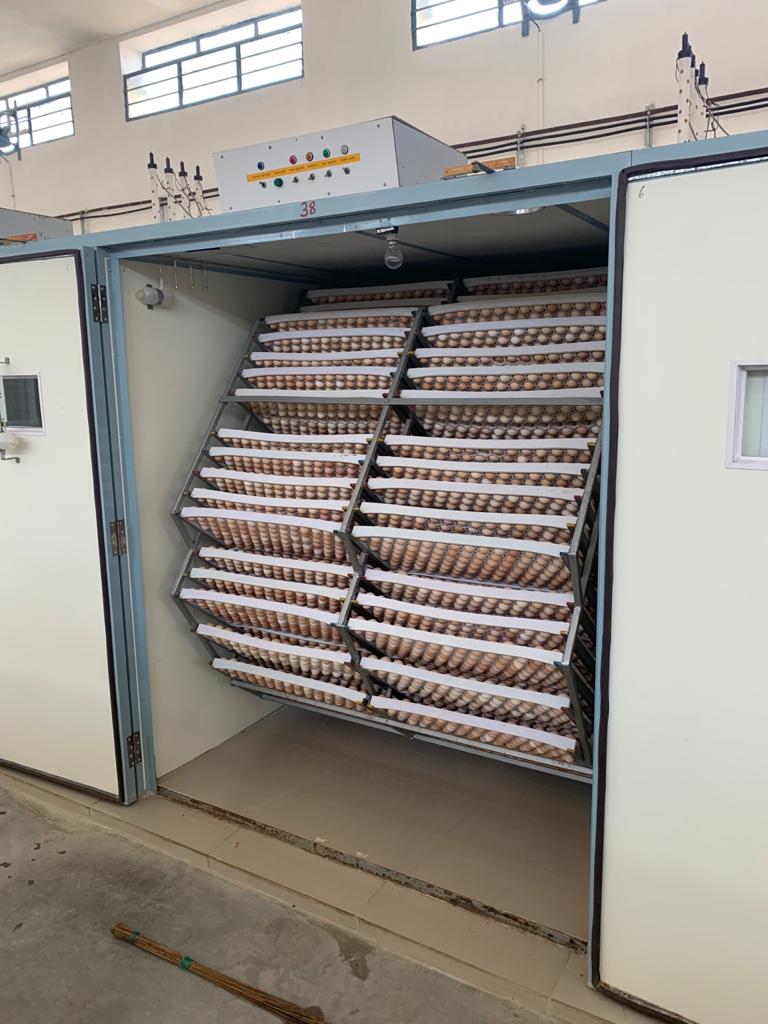

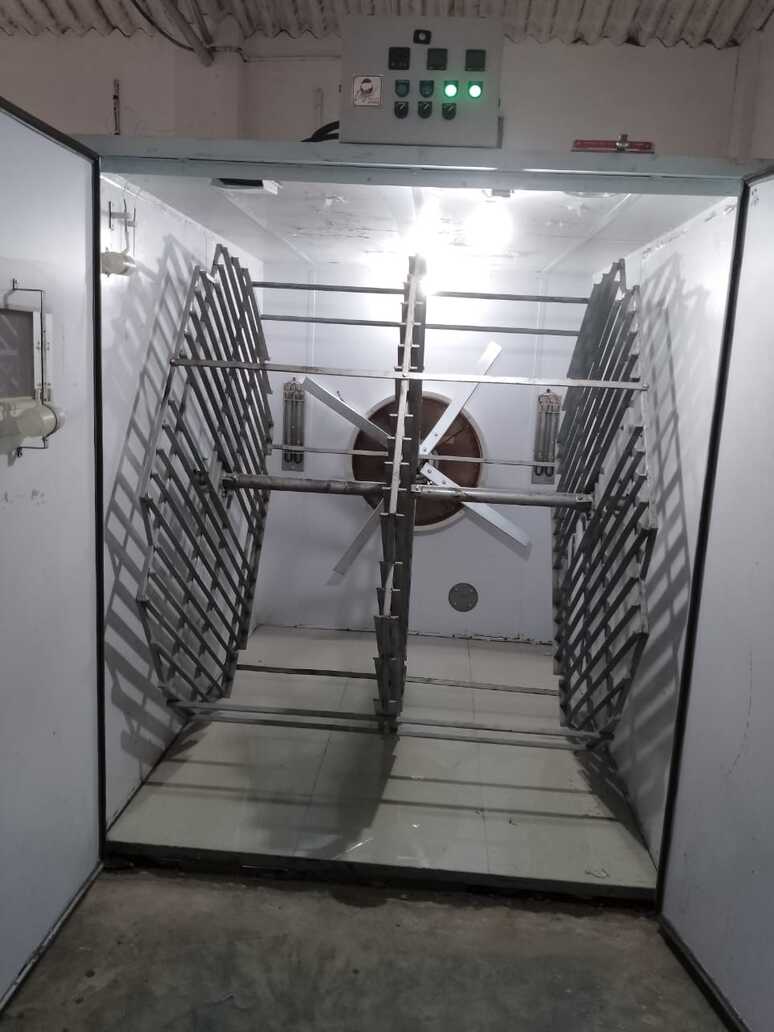

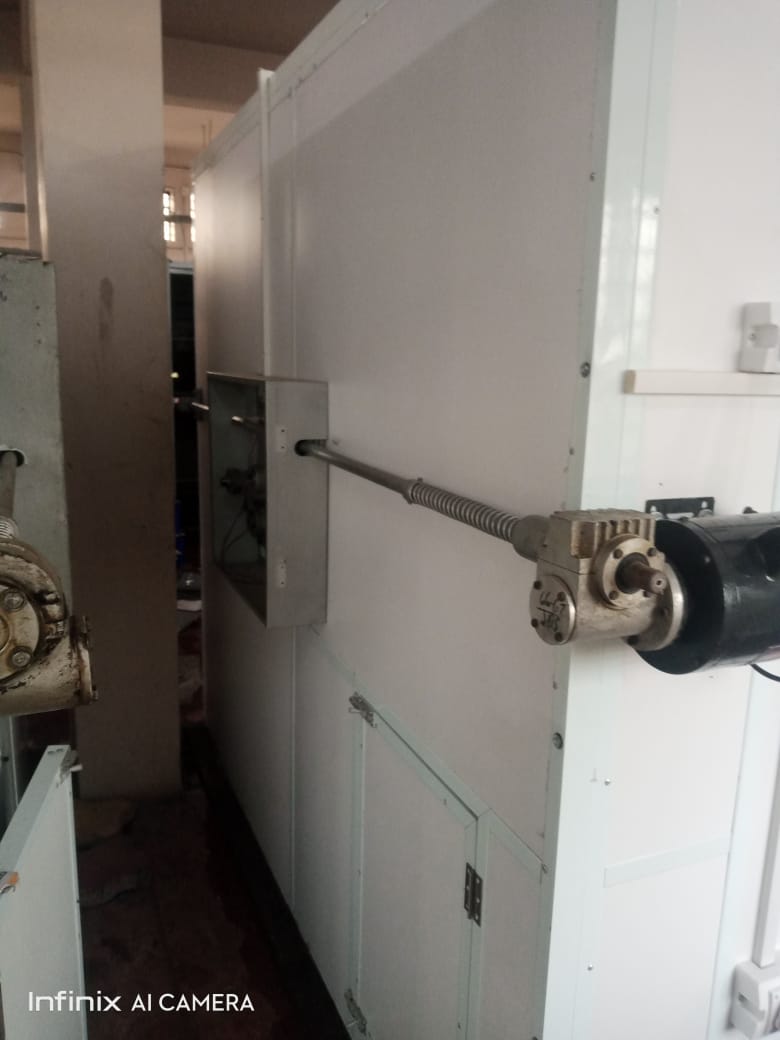

With the Highest number of eggs in each section, Dayal incubators allow for maximum uniformity and optimal climate conditions for each batch of eggs. The mechanical turning mechanism ensures a foolproof and reliable setter tray tuning system. Tray turning itself is inline with the airflow, which enables optimal ventilation conditions for each, individual setter tray.

Type	IS-17
Capacity Hen eggs ( 102 egg tray )	17,136
Capacity Hen eggs ( 101 egg tray )	16,968
Capacity Hen eggs ( 90 egg tray )	15,120
Capacity Quail eggs ( 264 egg tray )	44,352
Capacity Duck/Turkey  eggs ( 60 egg tray )	10,080
Length/width*/height (Inches)	92” x 72” x 82”
Number of Setter Racks	1
Number of trays	168
Setter tray dimensions (mm)	28.25” x 12” x 1”
Modular design	Heating, cooling, humidification and ventilation systems in each incubation section
Heating	Electrical heating and Heating copper coil
Cooling	Water cooling coil system
Humidification	Classic Gunny Ring        Ultrasonic Humidifier (Optional)
Incubator control	Digital Controller           PLC Based (Optional)
ESM (Digital Control Only)	Energy Saving Module

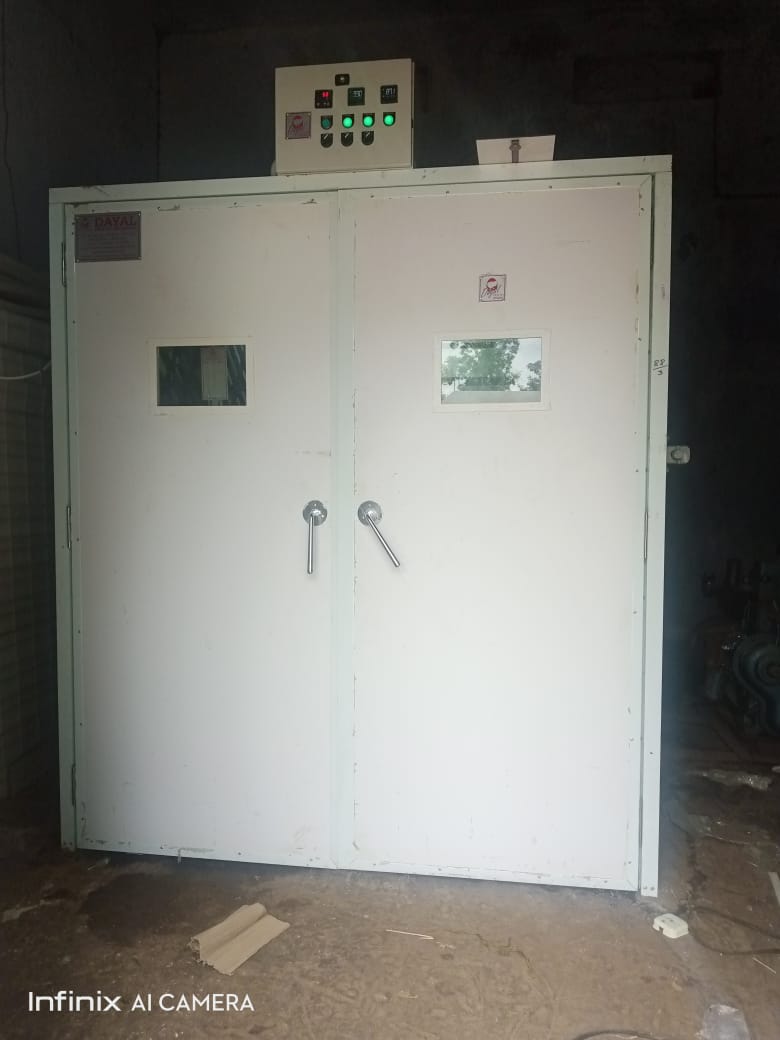

Housing	Fully sealed cabinet; robust, easy-to-clean construction ; extruded, anodized powder coated aluminium profiles for maximum stability and ease of installation; HPL panels with maximum insulation value; 2-lock door system, includes solid hinges, airtight sealing rubbers and solid door handles
