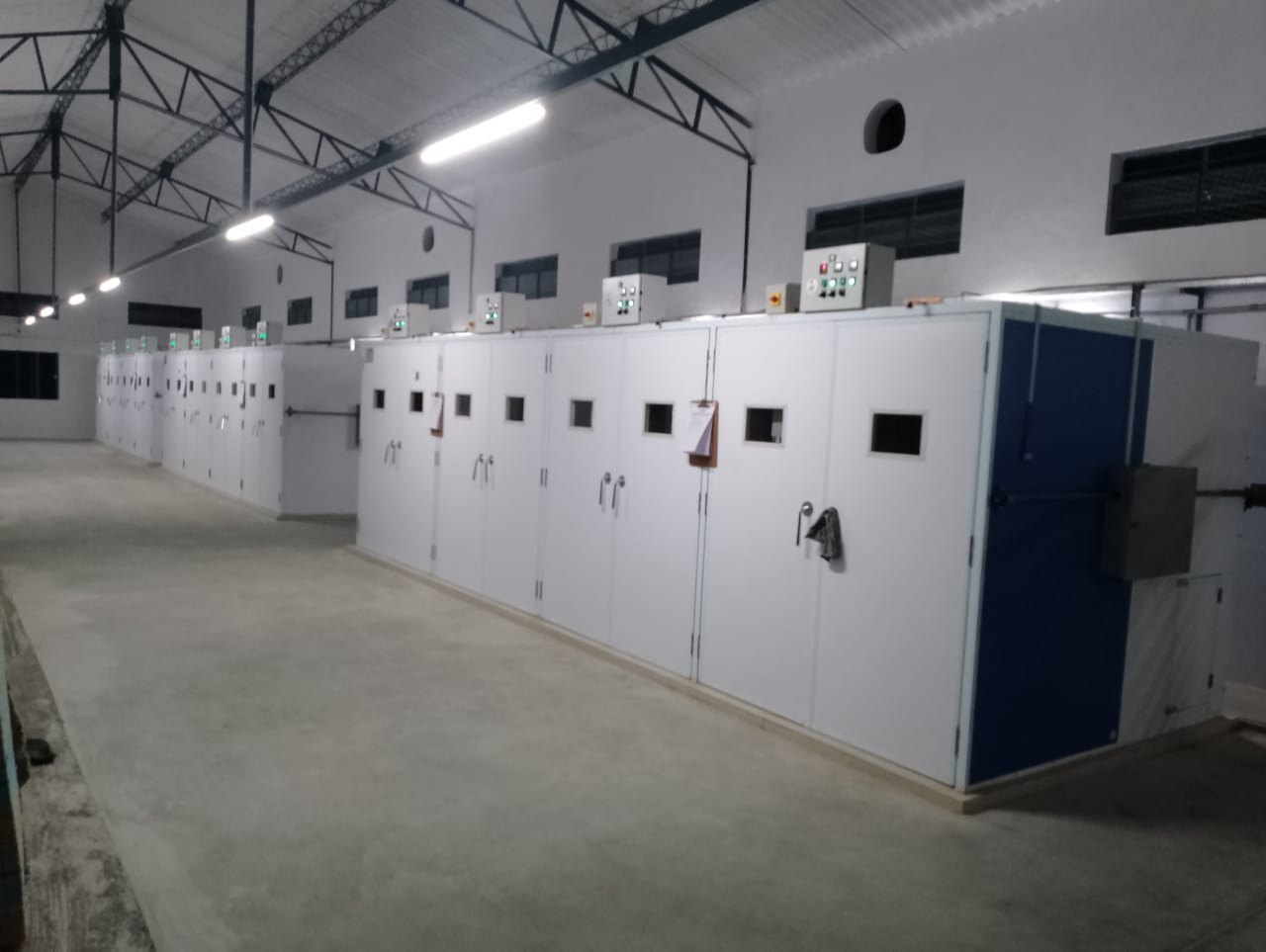

Egg Setter 68,544 (IS-68)
Salient Features
- Durable, Easy to Clean, Reinforced 3mm HPL Panels
- High Density (EPS) Thermacol for Better Insulation
- Specially designed 102 Eggs Tray for Easy usage
- Each Compartment has Digital Temperature, Humidity & Timer Controller
- Automatic Ventilation System for Proper Air Settings
- Less Inputs Required To Maintain Environmental Controls in the Incubator Room
- GI Racks for Easy Maintenance & Bio Safety
Technical Specifications
Type | IS-68 |
Capacity Hen eggs ( 102 egg tray ) | 68,544 |
Capacity Hen eggs ( 101 egg tray ) | 67,872 |
Capacity Hen eggs ( 90 egg tray ) | 60,480 |
Capacity Quail eggs ( 264 egg tray ) | 1,77,408 |
Capacity Duck/Turkey eggs ( 60 egg tray ) | 40,320 |
Length/width*/height (Inches) | 92” x 288” x 82” |
Number of Setter Racks | 4 |
Number of trays | 672 |
Setter tray dimensions (Inches) | 28.25” x 12” x 1” |
Modular design | Heating, cooling, humidification and ventilation systems in each incubation section |
Heating | Electrical heating |
Cooling | Air Cooling System |
Humidification | Classic Gunny Ring Ultrasonic Humidifier(Optional) |
Incubator control | Digital Controller PLC Based (Optional) |
ESM (Digital Control Only) | Energy Saving Module |
Housing | Fully sealed cabinet; robust, easy-to-clean construction ; extruded, anodized powder coated aluminium profiles for maximum stability and ease of installation; HPL panels with maximum insulation value; 3 point lock door system,includes solid hinges, airtight sealing rubbers and solid door handles |
