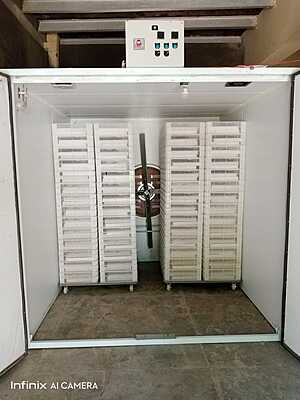

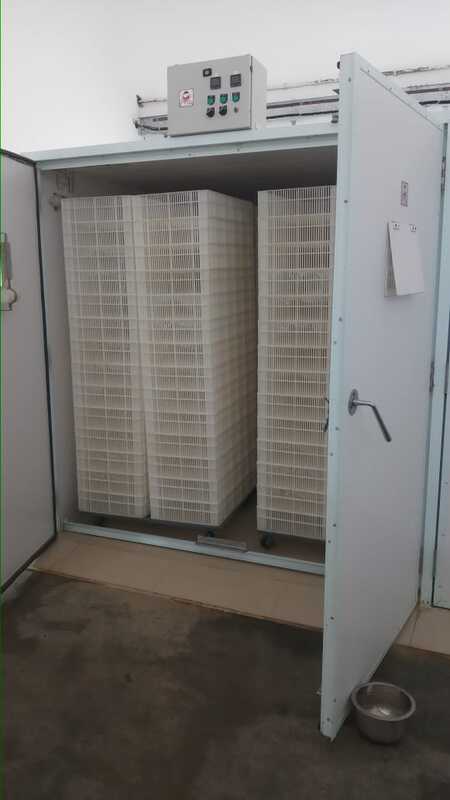

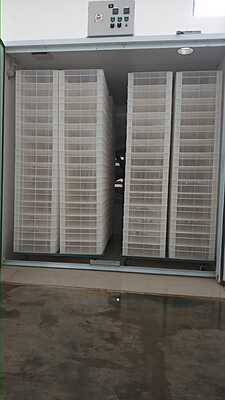

Egg Hatcher 11,424 (IH-11)
Salient Features
- Durable, Easy to Clean, Reinforced 3mm HPL Panels
- High Density (EPS) Thermacol for Better Insulation
- Specially designed Polyethylene Hatcher Baskets
- Each Compartment has Digital Temperature, Humidity Controller

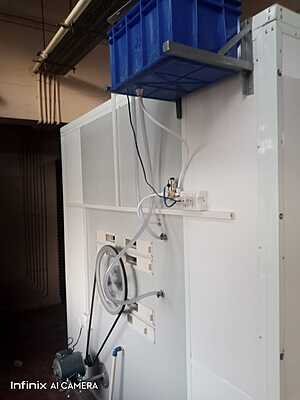

- Automatic Ventilation System for Proper Air Settings
- Less Inputs Required To Maintain Environmental Controls in the Incubator Room
- GI Trolleys for Easy Maintenance & Bio Safety
Technical Specifications
Type | IH-11 |
Capacity Hen eggs ( 102 egg tray ) | 11,424 |
Capacity Hen eggs ( 101 egg tray ) | 11,312 |
Capacity Hen eggs ( 90 egg tray ) | 10,080 |
Capacity Quail eggs ( 264 egg tray ) | 29,568 |
Capacity Duck/Turkey eggs ( 60 egg tray ) | 6,720 |
Length/width*/height (Inches) | 87” x 84” x 82” |
Number of Hatcher Trolley | 4 |
Number of trays | 112 |
Hatcher tray dimensions (Inches) | 31” x 16” x 5.75” |
Modular design | Heating, cooling, humidification and ventilation systems in each incubation section |
Heating | Electrical heating |
Cooling | Air Cooling System |
Humidification | Classic Gunny Ring Ultrasonic Humidifier(Optional) |
Incubator control | Digital Controller PLC Based (Optional) |
ESM (Digital Control Only) | Energy Saving Module |
Housing | Fully sealed cabinet; robust, easy-to-clean construction ; extruded, anodized powder coated aluminium profiles for maximum stability and ease of installation; HPL panels with maximum insulation value; 3 point lock door system,includes solid hinges, airtight sealing rubbers and solid door handles |
